Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing

Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing
Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing
Basisinformatie
Plaats van herkomst: Shanghai, China
Merknaam: Dikai
Certificering: CE, ISO 9001
Min. bestelaantal: 1
Prijs: $2,200-2,500
Beste prijs Contact nu
Spanning: AC220V Printkop: 24 mm, 200 dpi
Afdrukbereik: 24*20 mm/ 24*40 mm Afdrukmodus: Met tussenpozen
Afdrukfrequentie: ≤120 keer/min Lintlengte: 450m
Lintbreedte: 22 mm ~ 25 mm Interface: USB
Stroomvoorziening: AC220V 120W Luchtvoorziening: Niet nodig
Afdrukeenheid gewicht: 4,8 kg Controller boxgewicht: 0,4 kg
Afmetingen van afdrukeenheid: 170*165*160 mm Dimensies van de controller box: 170*25*115mm
Werktemperatuur: 0-40 ℃
Markeren:

24mm Printhead Thermal Transfer Overprinter

,

200 DPI TTO Printer

,

450m Ribbon Thermal Coding Machine

DIKAI China Thermal Transfer Overprinter (TTO)

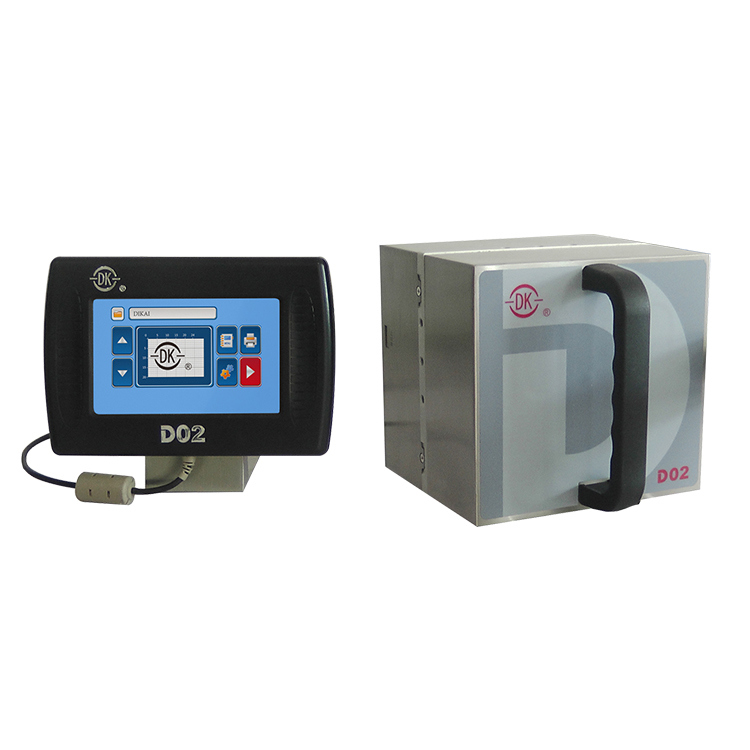

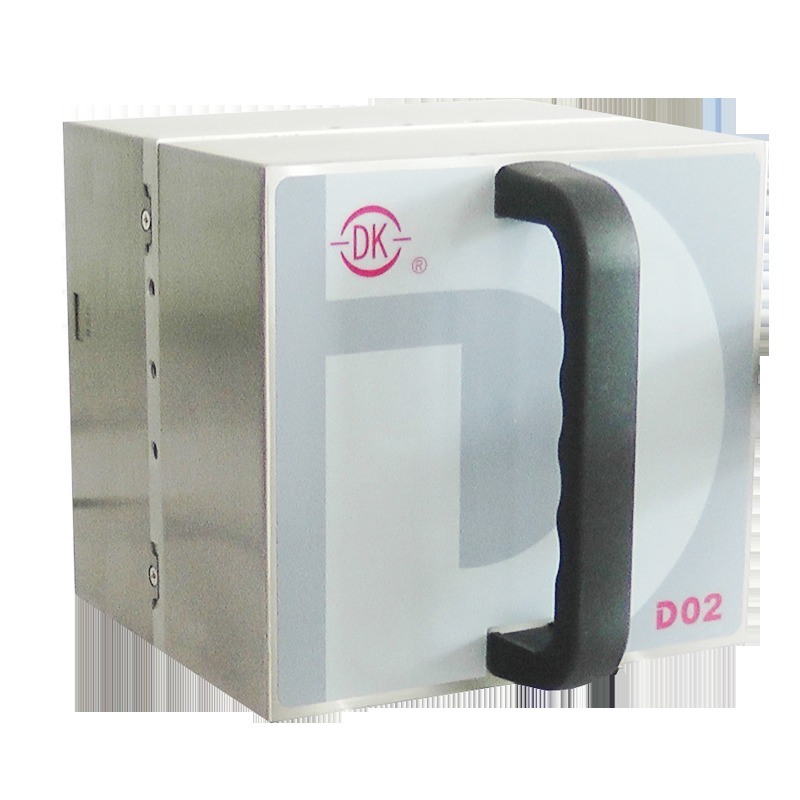

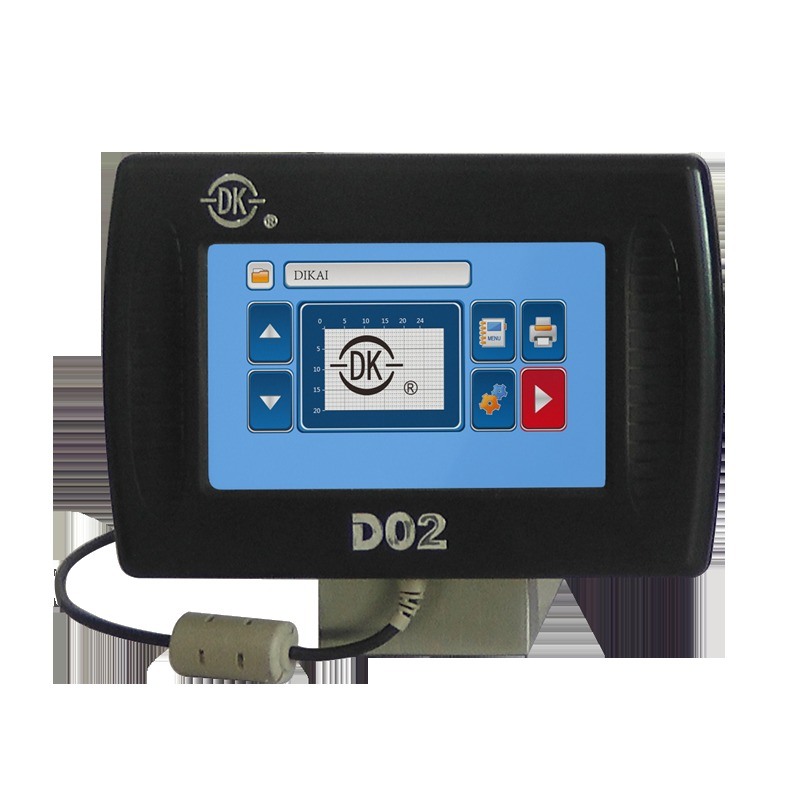

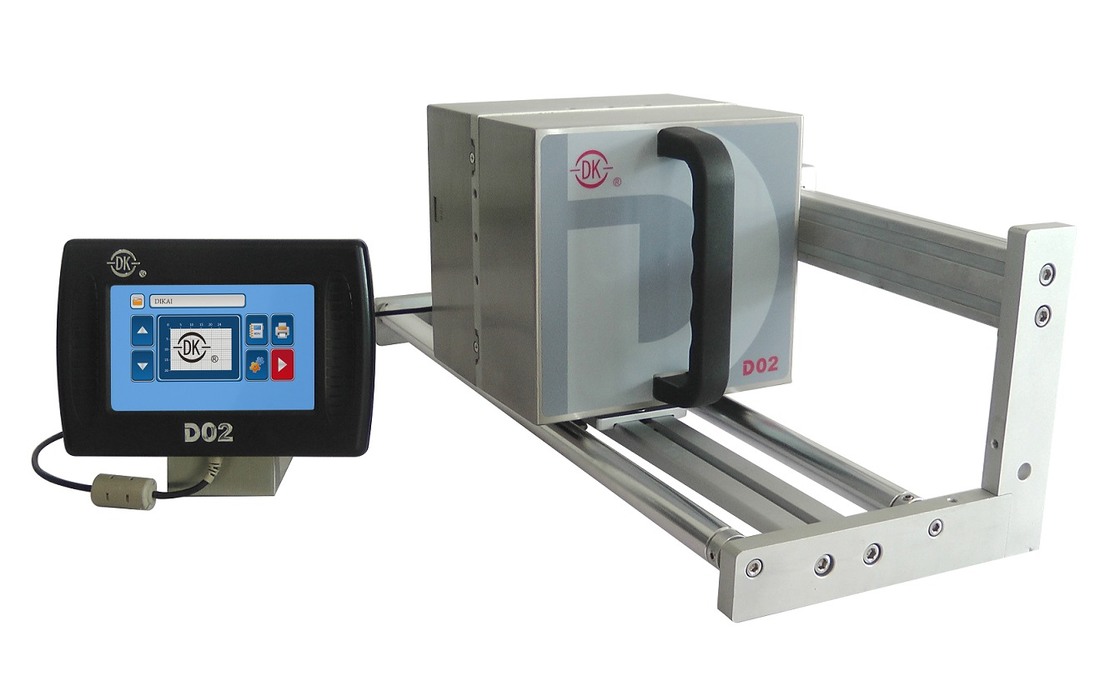

Product Overview
The D02 Thermal Transfer Overprinter was developed by DIKAI's own R&D team with 2 national patents. Designed for vertical packers, it can be installed on intermittent package machines and labeling machines to print barcodes, QR codes, logos, images, variable data, tables, nutrition lists, and serial numbers on package films in various print fonts.
Key Features
  • Continuous & Intermittent printing modes
  • 24mm Kyocera printhead with 200 DPI resolution
  • Real-time variable data printing capability
  • Low operational cost
  • User-friendly operation
Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing 0 Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing 1

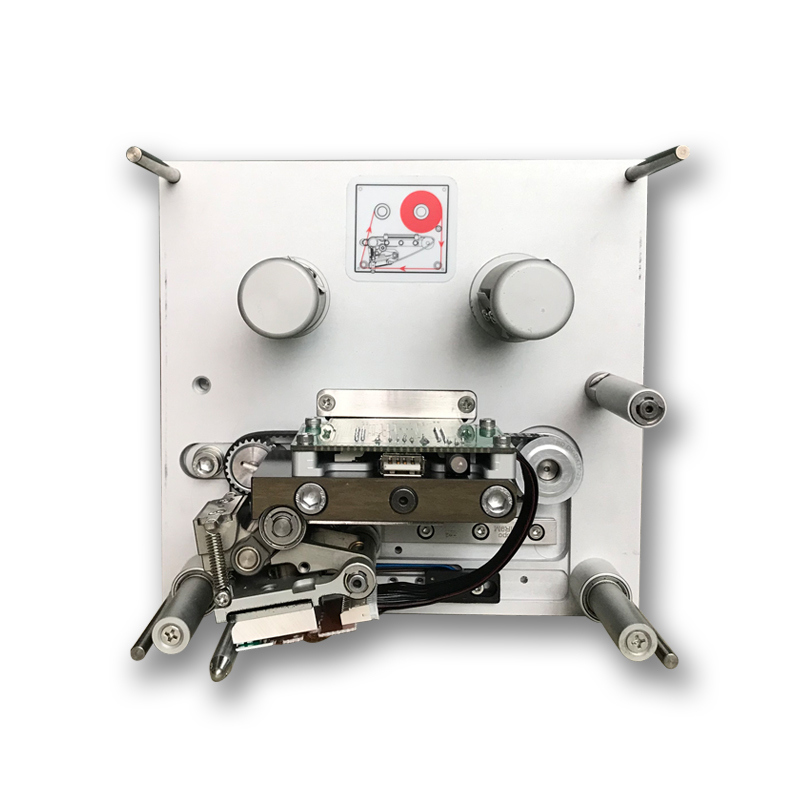

32mm Printhead Option
Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing 2

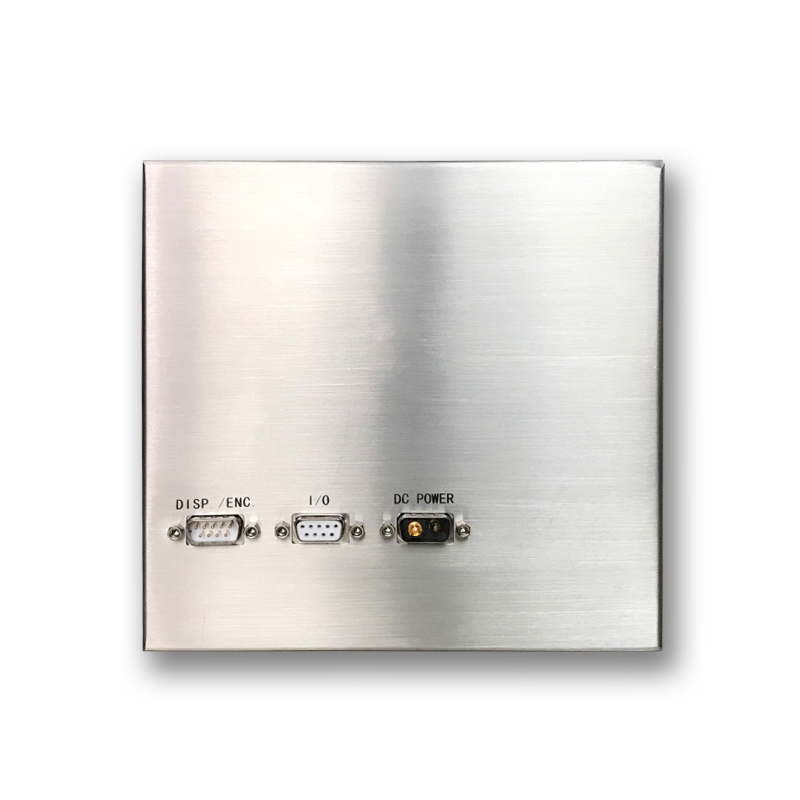

Interface Details
Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing 3
Technical Specifications
Specification Details
Print Head 24mm, Kyocera; 200DPI
Print Area Intermittent: 24mm*40mm
Ribbon Size 25mm*500m
Print Frequency Intermittent: up to 120PPM
Power AC110~220V, 50/60Hz, 120W
Operation Temperature 0-40℃
Humidity 10%~95% (non-condensing)
Weight Print head: 5kg, Operate handle: 0.4kg
Dimensions Print Unit: 210mm*210mm*185mm
Controller box: 233mm*180mm*128mm
Note: The prices shown on Alibaba are not final prices. Please consult us for proper solutions for your needs.
Packaging & Shipping
The carton package is suitable for sea, air, and fast courier shipping.
After Sales Service
Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing 4
  • R&D supports
  • Operation manual guidance
  • 24-hour professional online support
  • Video support
  • Possible onsite support
Company Introduction
Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing 5
Shanghai Dikai Coding Industry Co., Ltd was founded in 1995 and has dedicated itself to being a comprehensive coding solutions provider with R&D, innovation, manufacturing, sales & service of quality coding machines and consumables including TTO, Ink Roll Coder, TIJ, CIJ, Laser, Hot Stamp Coder, and Carton Coding Machines.
Our headquarters is located in Shanghai, China, with 16 branch offices and many authorized distributors domestically, serving over 4,000 end users and more than 200 packing machine manufacturers. Our products have been exported to more than 100 countries and regions since 2006.
Production Capacity
TTO Workshop: Over 1,000 sets per month
Ink Roll Coder Workshop: Over 1,500 sets per month
Laser Workshop: Over 80 sets per month
Certifications
Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing 6 Automatic Thermal Transfer Overprinter with 24mm Printhead 200 DPI and Max Ribbon Length 450m for High-Speed Printing 7
Frequently Asked Questions
1. Why choose Dikai?
Our company has dedicated 25 years to developing, manufacturing, and selling quality coding machines and consumables. We are committed to satisfying every customer's different needs in coding and marking applications.
2. What's the regular lead time for Dikai products?
Lead time for all Dikai goods is 1-2 weeks after order confirmation. For stocked goods, delivery can be made within 2 working days.
3. What's the warranty of Dikai goods?
Standard warranty is 12 months after leaving Dikai warehouse.
4. How about your after-sales service?
For countries with distributors, we rely on our distributor network for after-sales services. Dikai also provides online technical support and continuously upgraded video support materials.
