DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking

Long Service Life Ink Roll Coder

Compact Size Date Code Printer

Stable Printing Expiry Date Printer

Plaats van herkomst:

Shanghai, China

Merknaam:

DIKAI

Certificering:

CE; ISO 9001

Neem contact met ons op

Vraag een offerte

DIKAI DK-1100A Ink Roll Coder with Long Service Life Compact Size and Stable Printing for Date Code and Expiry Date Marking

Productdetails

Spanning:

AC220+10V,50/60Hz

Stroom:

Zekering van 130 W, 2 A

Afdruksnelheid:

max. 300PPM, 35 meter/minuut

Afdrukbereik:

T-type: ≤13 regels, maximaal 20 tekens; R-Type: ≤10 regels, maximaal 13 tekens

Typegrootte:

T-Type: 2.0T,2.5T,3.0T,2.5*7T; R-type: 3.5R,4.5R,5.5R

Zaklengte:

≥38 mm (4-up-printer), ≥75 mm (2-up-printer)

Afmeting van de inktrol:

36*32mm, 36*35mm, 36*40mm

Afmetingen:

Printereenheid: 120*100*170mm

Gewicht:

Afdrukeenheid: 2 kg, controllerdoos: 1 kg

Afdrukfrequentie:

≤300 keer/min

Drukinhoud:

MFG/EXP datum, partijnummer, serienummer

Kerncomponenten:

PC-bord

Aangedreven type:

Elektrisch

Automatische rangschikking:

Automatisch

Verpakkingsmateriaal:

Papier

Markeren:

Long Service Life Ink Roll Coder

Compact Size Date Code Printer

Stable Printing Expiry Date Printer

Betaling en verzendvoorwaarden

Min. bestelaantal

Prijs

$450-600

Levertijd

5-8 werkdagen

Gerelateerde producten

Automatische 210V-de Codagemachine 36mm van het Inktbroodje 2A-de Drukmachine van de zekeringsmfg Datum

Vind de beste prijs

130W hete Codeur 36x35mm van het Inktbroodje de Printer van de de Vervaldatumcode van 300 p.p.m.

Vind de beste prijs

Van het het Voedselpakket van de Vervaldatumzegel de Drukmachine 130W 35m/min AC 230V

Vind de beste prijs

220V 36x32mm de de Hete Codeur van het Inktbroodje/Machine van de Vervaldatumcodage 300 p.p.m.

Vind de beste prijs

Neem contact met ons op

Contact opnemen

Productbeschrijving

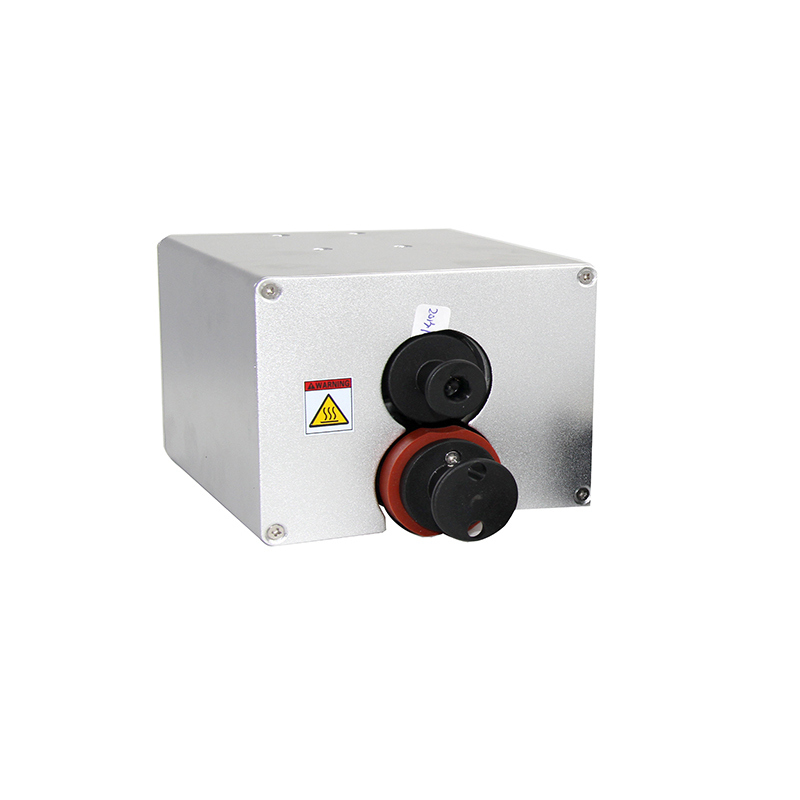

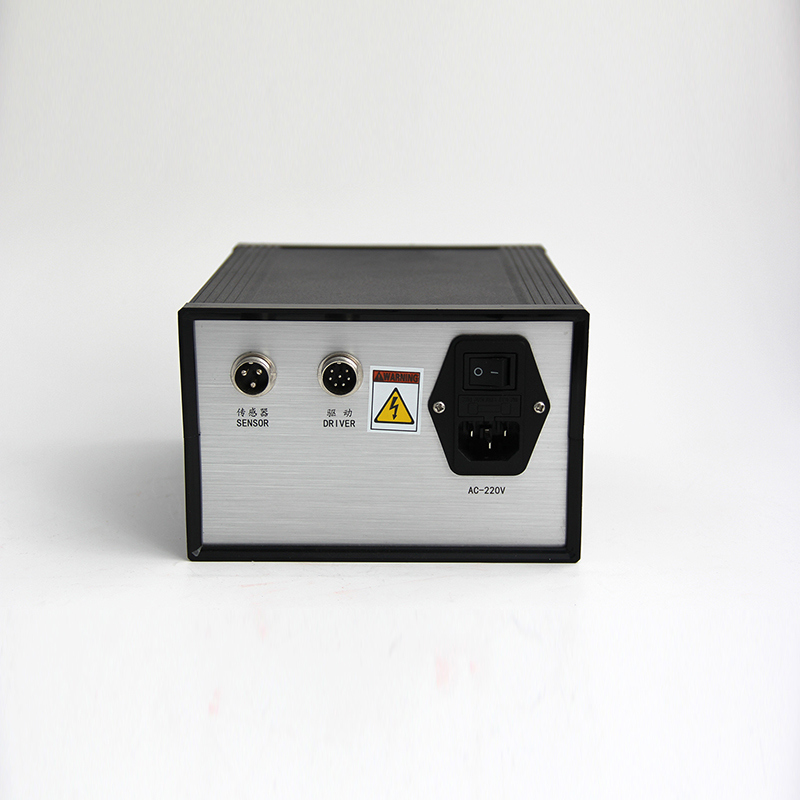

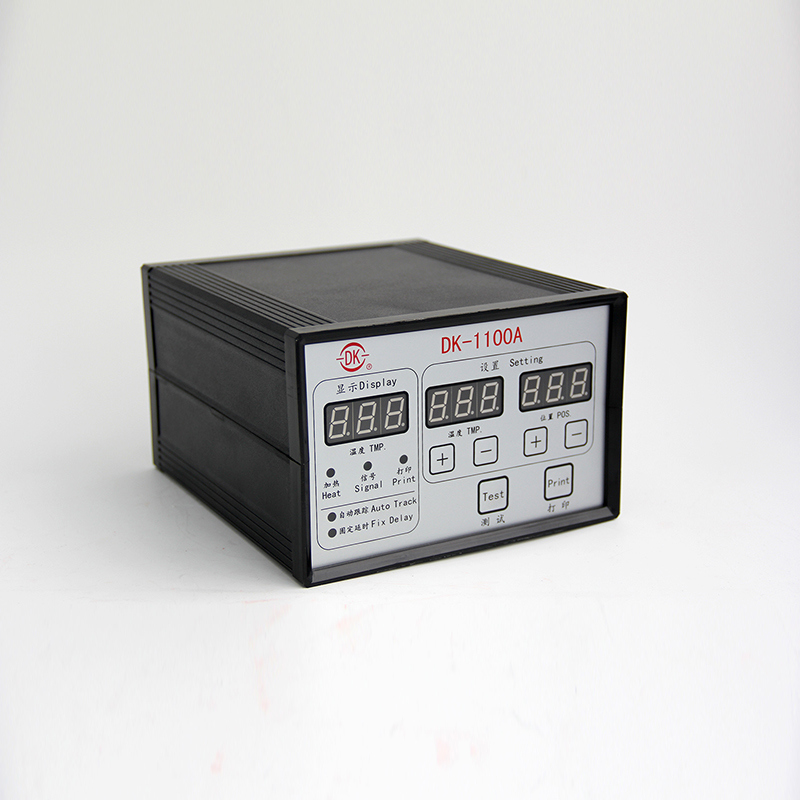

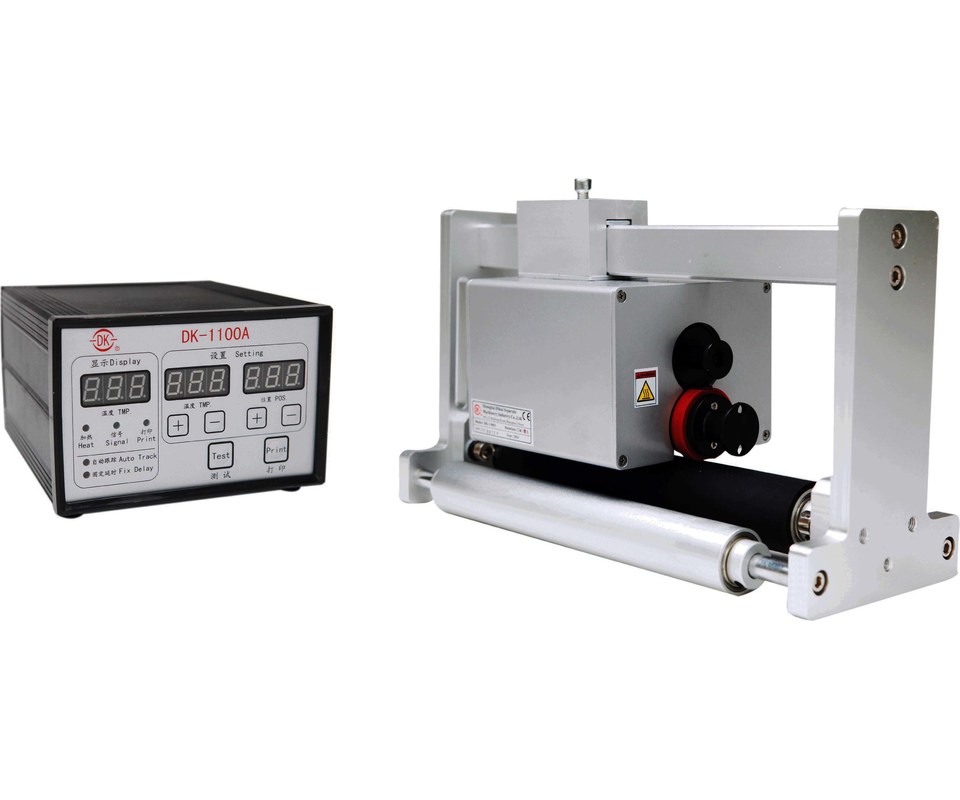

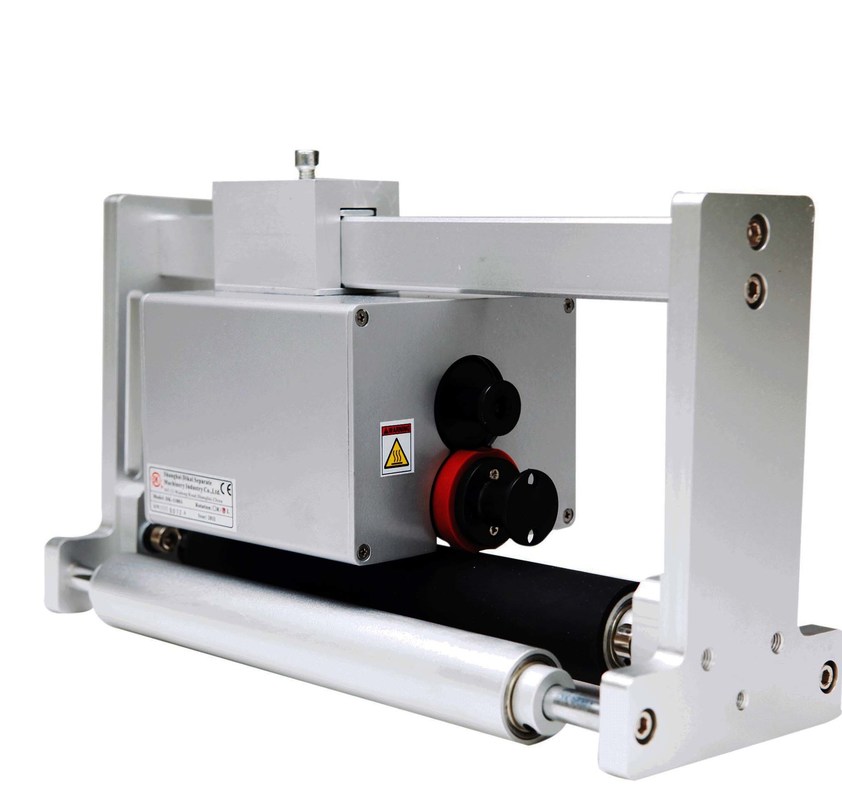

DIKAI DK-1100A Ink Roll Coder Date Machine

Product Overview

The DK-1100A Ink Roll Coder is an electronic continuous motion coder designed for integration with packing machines, capable of printing at speeds up to 300 PPM. With a print area supporting up to 13 lines, it efficiently prints MFG/EXP dates, lot numbers, and other essential information on flexible packaging films. Widely used in food, daily chemicals, tissue, rice, and seed industries, this model has achieved over 100,000 units sold since its 2011 launch. Its nearly maintenance-free operation significantly reduces operational costs.

Key Features

Fast printing speed up to 300 PPM
Consistent and stable printing quality
Low mechanism consumption
Compact design for easy integration
Simple installation and operation

Technical Specifications

Product Name	DK-1100A Ink Roll Coder
Print Area	T-Type (Axial): ≤13 lines, max 20 characters per line R-Type (Radial): ≤10 lines, max 13 characters per line
Type Sizes	T-Type: 2.0T, 2.5T, 3.0T, 2.5*7T R-Type: 3.5R, 4.5R, 5.5R
Pouch Length	≥38mm (4-up printer) ≥75mm (2-up printer)
Print Frequency	≤300 times/min
Ink Roll Required	36×32mm, 36×35mm, 36×40mm
Electricity	AC220+10V, 50/60Hz
Power	130W, 2A fuse
Print Speed	Max 300PPM, 35 meters/minute
Print Contents	MFG/EXP date, lot number, serial number, etc.

Note: Prices shown are not final. Please consult us for customized solutions.

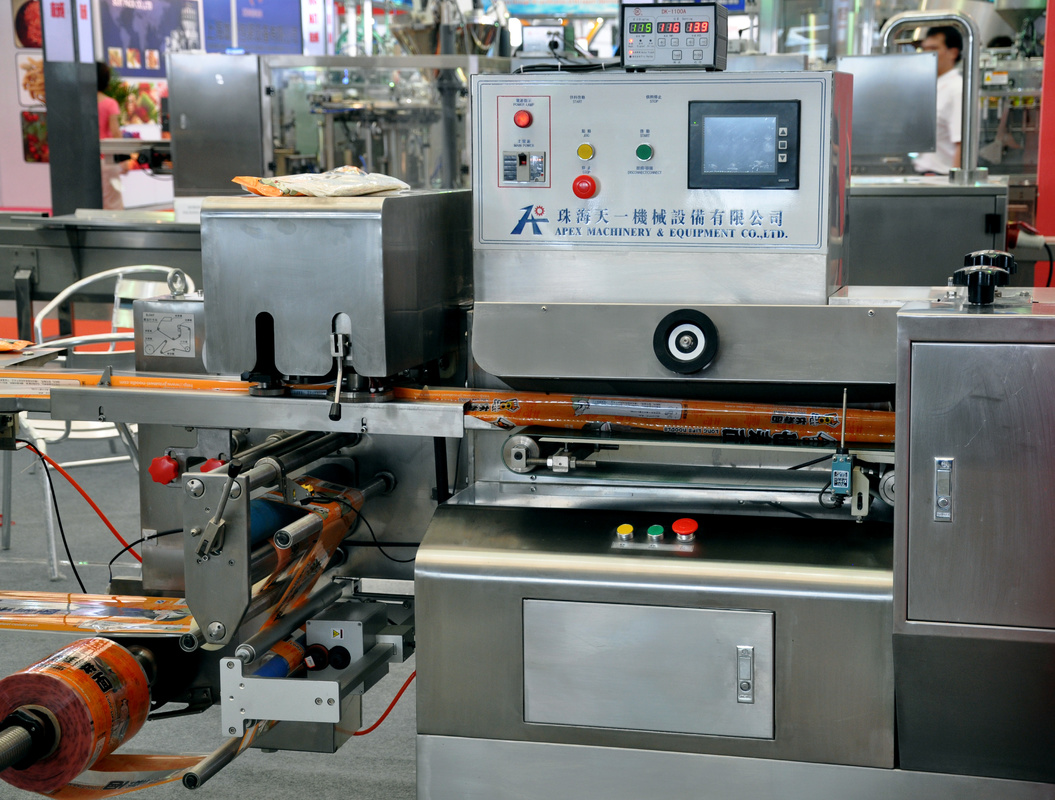

Installation & Operation

Printing Samples

Packaging & Shipping

The product is securely packaged in cartons suitable for sea, air, or courier shipping.

Technical Support

R&D support
Operation manual guidance
24-hour professional online support
Video tutorials
Possible on-site support

Frequently Asked Questions

1. Why choose Dikai?

With 25 years of experience in developing, manufacturing, and selling quality coding machines and consumables, we are committed to meeting every customer's unique coding and marking requirements.

2. What's the regular lead time for Dikai products?

Standard lead time is 1-2 weeks after order confirmation. Stocked items can be shipped within 2 working days.

3. What's the warranty of Dikai goods?

Standard warranty is 12 months from the date of leaving our warehouse.

4. How about your after-sales service?

We work with local distributors for after-sales support in their regions, supplemented by online technical services and continuously updated video support materials.
